Highlight of the Products
- Smooth internal surface
- Hygienic and odour free
- Chemical resistance
- No corrosion
- Maintainance-free
- Long life
- Economical
- Pipes Manufactured as per IS:4985:2000, and Fittings as per IS:7834:1987
-
Feilds of application:
-
- Irrigation
- Water supply
- Industrial Process lines
- Swimming pools
- Agriculture
TRUFLO by Hindware offers a wide range of PVC pressure pipes and fittings, manufactured as per IS 4985:2000 standards. Availability of sizes as per the table below.
Product Availability and Standards
| VARIANTS | SIZES AVAILABLE | PIPE | FITTINGS |
|---|---|---|---|
| Pressure class 4 kg/cm2 | 63mm, 75mm, 90mm, 110mm, 140mm, 160mm, 180mm, 200mm, 250mm, 280mm, 315mm | IS:4985:2000 | IS:7834:1987 |
| Pressure class 6 kg/cm2 | 40mm, 50mm, 63mm, 75mm, 90mm, 110mm, 140mm, 160mm, 180mm, 200mm, 250mm, 280mm, 315mm | IS:4985:2000 | IS:7834:1987 |
| Pressure class 10 kg/cm2 | 20mm, 25mm, 32mm, 40mm, 50mm, 63mm, 75mm, 90mm, 110mm, 140mm, 160mm, 180mm, 200mm, 250mm, 280mm | IS:4985:2000 | IS:7834:1987 |
| Heavy pressure plumbing pipe | 20mm, 25mm, 32mm, 40mm, 50mm | IS:4985:2000 | IS:7834:1987 |
The TRUFLO PVC pipes and fittings can be used for a variety of applications like, irrigation, water supply, industrial process lines, swimming pools, firefighting mains, etc. This piping system is far better than CI, DI or RCC pipes, as it is light in weight, quick and easy to install, has excellent corrosion and chemical resistance properties, high flow rates, long life and economy.
Advantages
a. Odourless and hygienic- These pipes are suitable for transportation of potable water as it does not allow any contamination in water.
b. High corrosion resistance- This piping system is resistant to chemical corrosion, which gives these pipes much longer life.
c. High chemical resistance- Pipes offer excellent resistance to acids, oxidizing agents, alkalis, oils and domestic effluents. There is no need for repeated painting or coating for surface protection.
d. Smooth bore- Pipes have a smooth inner surface, resulting in a better flow compared to Cement, CI and GI pipes
e. Self-extinguishing quality- Does not support combustion.
f. Long life- As these pipes are free from scale formation, rusting, weathering and chemical action, this results in a much longer life.
g. Economical- Light weight piping system, very easy to transport, install and highly economical compared to conventional piping systems.
Installation Procedure
| COLOUR CODING (PRINTING ON PIPES) | |||
|---|---|---|---|
| Pressure Rating | Class | Colour | Image |
| 4 kg | 2 | Blue strip |  |
| 6 kg | 3 | Green strip | |
| 10 kg | 5 | Yellow strip | |
| Heavy Pressure Plumbing | Pink strip | ||

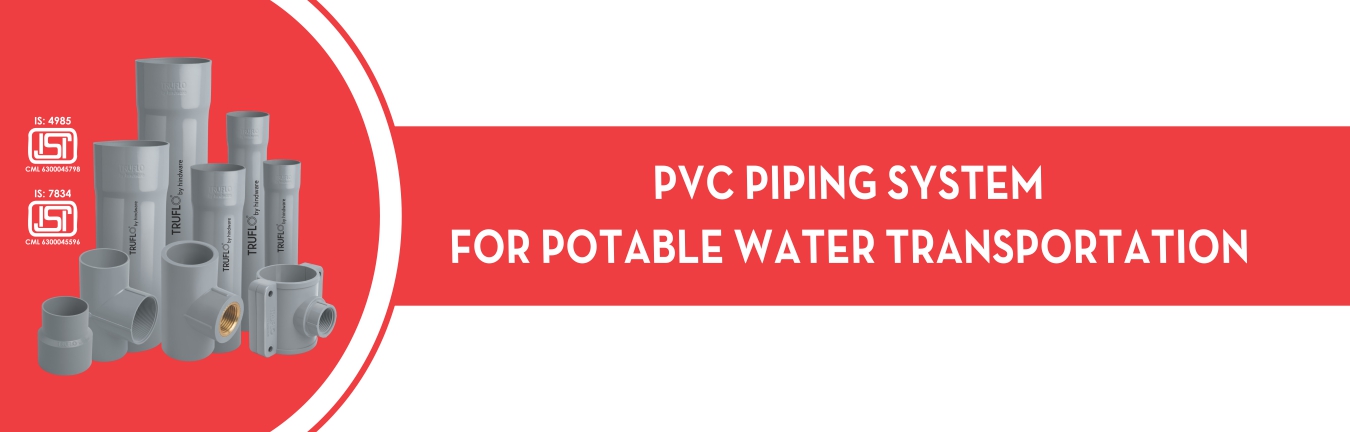

PVC PRESSURE PIPING SYSTEM FOR PORTABLE WATER DISTRIBUTION
PVC 4985 PRESSURE PIPES - HSN CODE: 3917
4 kgf/cm2 (6Mtr.Length) 20ft
HSN Code: 39172390
| ITEM CODE | SIZE (MM) |
|---|---|
| PP04000063 | 63 |
| PP04000075 | 75 |
| PP04000090 | 90 |
| PP04000110 | 110 |
| PP04000140 | 140 |
| PP04000160 | 160 |
| PP04000180 | 180 |
| PP04000200 | 200 |
| PP04000225 | 225 |
| PP04000250 | 250 |
| PP04000280 | 280 |
| PP04000315 | 315 |
6 kgf/cm2 (6Mtr.Length) 20ft
HSN Code: 39172390
| ITEM CODE | SIZE (MM) |
|---|---|
| PP06000040 | 40 |
| PP06000050 | 50 |
| PP06000063 | 63 |
| PP06000075 | 75 |
| PP06000090 | 90 |
| PP06000110 | 110 |
| PP06000140 | 140 |
| PP06000160 | 160 |
| PP06000180 | 180 |
| PP06000200 | 200 |
| PP06000225 | 225 |
| PP06000250 | 250 |
| PP06000280 | 280 |
| PP06000315 | 315 |
10 kgf/cm2 (6Mtr.Length) 20ft
HSN Code: 39172390
| ITEM CODE | SIZE (MM) |
|---|---|
| PP10000020 | 20 |
| PP10000025 | 25 |
| PP10000032 | 32 |
| PP10000040 | 40 |
| PP10000050 | 50 |
| PP10000063 | 63 |
| PP10000075 | 75 |
| PP10000090 | 90 |
| PP10000110 | 110 |
| PP10000140 | 140 |
| PP10000160 | 160 |
| PP10000180 | 180 |
| PP10000200 | 200 |
| PP10000225 | 225 |
| PP10000250 | 250 |
| PP10000280 | 280 |
| PP10000315 | 315 |
Heavy Pressure Plumbing Pipe (6Mtr.Length) 20 ft
HSN Code: 39172390
| ITEM CODE | SIZE (MM) |
|---|---|
| PPHP000020 | 20 |
| PPHP000025 | 25 |
| PPHP000032 | 32 |
| PPHP000040 | 40 |
| PPHP000050 | 50 |
PVC FITTINGS - HSN CODE: 3917
Coupler - 10 kgf/cm2 Pressure - ISI Marked
HSN Code: 39172390
| ITEM CODE | SIZE (MM) |
|---|---|
| PF11000020 | 20 |
| PF11000025 | 25 |
| PF11000032 | 32 |
Coupler - 6 kgf/cm2 Pressure - ISI Marked
HSN Code: 39172390
| ITEM CODE | SIZE (MM) |
|---|---|
| PF11000040 | 40 |
| PF11000050 | 50 |
| PF11000063 | 63 |
| PF11000075 | 75 |
| PF11000090 | 90 |
| PF11000110 | 110 |
| PF11000160 | 160 |
Elbow 90o PLAIN - 10 kgf/cm2 Pressure - ISI Marked
HSN Code: 39172390
| ITEM CODE | SIZE (MM) |
|---|---|
| PF01000020 | 20 |
| PF01000025 | 25 |
| PF01000032 | 32 |
Elbow 90o PLAIN - 6 kgf/cm2 Pressure - ISI Marked
HSN Code: 39172390
| ITEM CODE | SIZE (MM) |
|---|---|
| PF01000040 | 40 |
| PF01000050 | 50 |
| PF01000063 | 63 |
| PF01000075 | 75 |
| PF01000090 | 90 |
| PF01000110 | 110 |
| PF01000160 | 160 |
ELBOW 90o PLAIN - NOVA (PN 4)
HSN Code: 39172390
| ITEM CODE | SIZE (MM) |
|---|---|
| PF02000063 | 63 |
| PF02000075 | 75 |
| PF02000090 | 90 |
| PF02000110 | 110 |
ELBOW 90o PLAIN - ALFA
HSN Code: 39172390
| ITEM CODE | SIZE (MM) |
|---|---|
| PF03000063 | 63 |
| PF03000075 | 75 |
| PF03000090 | 90 |
| PF03000110 | 110 |
End Cap Plain - 10 kgf/cm2 Pressure
HSN Code: 39172390
| ITEM CODE | SIZE (MM) |
|---|---|
| PF12000020 | 20 |
| PF12000025 | 25 |
| PF12000032 | 32 |
End Cap Plain - 6 kgf/cm2 Pressure
HSN Code: 39172390
| ITEM CODE | SIZE (MM) |
|---|---|
| PF12000040 | 40 |
| PF12000050 | 50 |
| PF12000063 | 63 |
| PF12000075 | 75 |
| PF12000090 | 90 |
| PF12000110 | 110 |
Male Threaded Adaptor - Heavy
HSN Code: 39172390
| ITEM CODE | SIZE (MM) |
|---|---|
| PF15000020 | 20 |
| PF15000025 | 25 |
| PF15000032 | 32 |
| PF15000040 | 40 |
| PF15000050 | 50 |
| PF15000063 | 63 |
| PF15000075 | 75 |
| PF15000090 | 90 |
| PF15000110 | 110 |
Female Threaded Adaptor - Heavy
HSN Code: 39172390
| ITEM CODE | SIZE (MM) |
|---|---|
| PF17000020 | 20 |
| PF17000025 | 25 |
| PF17000032 | 32 |
| PF17000040 | 40 |
| PF17000050 | 50 |
| PF17000063 | 63 |
| PF17000075 | 75 |
| PF17000090 | 90 |
| PF17000110 | 110 |
Male Threaded Reducing Adaptor - Heavy
HSN Code: 39172390
| ITEM CODE | SIZE (MM) |
|---|---|
| PF16075063 | 75X63 |
| PF16090075 | 90X75 |
Female Threaded Reducing Adaptor - Heavy
HSN Code: 39172390
| ITEM CODE | SIZE (MM) |
|---|---|
| PF18025020 | 25X20 |
| PF18032020 | 32X20 |
| PF18032025 | 32X25 |
| PF18040032 | 40X32 |
| PF18075063 | 75X63 |
Reducer - Heavy
HSN Code: 39172390
| ITEM CODE | SIZE (MM) |
|---|---|
| PF20110090 | 110X90 |
| PF20110075 | 110X75 |
| PF20110063 | 110X63 |
| PF20090075 | 90X75 |
| PF20090063 | 90X63 |
| PF20090050 | 90X50 |
| PF20075040 | 75X40 |
| PF20075050 | 75X50 |
| PF20075063 | 75X63 |
| PF20063032 | 63X32 |
| PF20063040 | 63X40 |
| PF20063050 | 63X50 |
| PF20050020 | 50X20 |
| PF20050025 | 50X25 |
| PF20050032 | 50X32 |
| PF20050040 | 50X40 |
| PF20040025 | 40X25 |
| PF20040032 | 40X32 |
| PF20032020 | 32X20 |
| PF20032025 | 32X25 |
| PF20025020 | 25X20 |
Reducer Tee - Heavy
HSN Code: 39172390
| ITEM CODE | SIZE (MM) |
|---|---|
| PF06025020 | 25X20 |
| PF06032020 | 32X20 |
| PF06032025 | 32X25 |
| PF06040020 | 40X20 |
| PF06040025 | 40X25 |
| PF06040032 | 40X32 |
| PF06050032 | 50X32 |
| PF06063032 | 63X32 |
| PF06063040 | 63X40 |
| PF06075032 | 75X32 |
| PF06075063 | 75X63 |
| PF06090063 | 90X63 |
| PF06090075 | 90X75 |
| PF06110063 | 110X63 |
| PF06110075 | 110X75 |
| PF06110090 | 110X90 |
Reducing Bush - Heavy
HSN Code: 39172390
| ITEM CODE | SIZE (MM) |
|---|---|
| PF21110075 | 110X75 |
| PF21110090 | 110X90 |
| PF21090063 | 90X63 |
| PF21090075 | 90X75 |
| PF21075063 | 75X63 |
| PF21063040 | 63X40 |
| PF21063050 | 63X50 |
| PF21050032 | 50X32 |
| PF21050040 | 50X40 |
| PF21040025 | 40X25 |
| PF21040032 | 40X32 |
| PF21032025 | 32X25 |
Reducing Tthreaded Elbow - Heavy
HSN Code: 39172390
| ITEM CODE | SIZE (MM) |
|---|---|
| PF04025020 | 25X20 |
| PF04063050 | 63X50 |
| PF04075063 | 75X63 |
| PF04090075 | 90X75 |
Reducing Tthreaded Tee - Heavy
HSN Code: 39172390
| ITEM CODE | SIZE (MM) |
|---|---|
| PF09025020 | 25X20 |
| PF09032025 | 32X25 |
| PF09063050 | 63X50 |
| PF09075063 | 75X63 |
| PF10090075 | 90X75 |
Service Saddle
HSN Code: 39172390
| ITEM CODE | SIZE (MM) |
|---|---|
| PF19063020 | 63X20 |
| PF19063025 | 63X25 |
| PF19063032 | 63X32 |
| PF19075020 | 75X20 |
| PF19075025 | 75X25 |
| PF19075032 | 75X32 |
| PF19090020 | 90X20 |
| PF19090025 | 90X25 |
| PF19090032 | 90X32 |
| PF19110020 | 110X20 |
| PF19110025 | 110X25 |
| PF19110032 | 110X32 |
Tee 90o Plain - 10 kgf/cm2 Pressure - ISI Marked
HSN Code: 39172390
| ITEM CODE | SIZE (MM) |
|---|---|
| PF05000020 | 20 |
| PF05000025 | 25 |
| PF05000032 | 32 |
Tee 90o Plain - 6 kgf/cm2 Pressure - ISI Marked
HSN Code: 39172390
| ITEM CODE | SIZE (MM) |
|---|---|
| PF05000040 | 40 |
| PF05000050 | 50 |
| PF05000063 | 63 |
| PF05000075 | 75 |
| PF05000090 | 90 |
| PF05000110 | 110 |
| PF05000160 | 160 |
Tee 90o Plain - Nova (PN 4)
HSN Code: 39172390
| ITEM CODE | SIZE (MM) |
|---|---|
| PF07000063 | 63 |
| PF07000075 | 75 |
| PF07000090 | 90 |
| PF07000110 | 110 |
Tee 90o Plain - Alfa
HSN Code: 39172390
| ITEM CODE | SIZE (MM) |
|---|---|
| PF08000063 | 63 |
| PF08000075 | 75 |
| PF08000090 | 90 |
| PF08000110 | 110 |
Threded Elbow - Heavy
HSN Code: 39172390
| ITEM CODE | SIZE (MM) |
|---|---|
| PF04000020 | 20 |
| PF04000025 | 25 |
| PF04000063 | 63 |
| PF04000075 | 75 |
| PF04000090 | 90 |
Bend 45o - 10 kgf/cm2 Pressure – ISI Marked
HSN Code: 39172390
| ITEM CODE | SIZE (MM) |
|---|---|
| PF25000025 | 25 |
| PF25000032 | 32 |
Bend 45o - 6 kgf/cm2 Pressure – ISI Marked
HSN Code: 39172390
| ITEM CODE | SIZE (MM) |
|---|---|
| PF26000040 | 40 |
| PF26000050 | 50 |
| PF26000063 | 63 |
Union -10 kgf/cm2 Pressure – ISI Marked
HSN Code: 39172390
| ITEM CODE | SIZE (MM) |
|---|---|
| PF14000025 | 25 |
| PF14000032 | 32 |
| PF14000040 | 40 |
Threaded End Cap - Heavy
HSN Code: 39172390
| ITEM CODE | SIZE (MM) |
|---|---|
| PF13000020 | 20 |
| PF13000025 | 25 |
| PF13000032 | 32 |
| PF13000040 | 40 |
| PF13000050 | 50 |
| PF13000063 | 63 |
| PF13000075 | 75 |
| PF13000090 | 90 |
| PF13000110 | 110 |
Threaded Tee - Heavy
HSN Code: 39172390
| ITEM CODE | SIZE (MM) |
|---|---|
| PF09000025 | 25 |
| PF09000032 | 32 |
| PF09000063 | 63 |
| PF09000075 | 75 |
| PF09000090 | 90 |
PVC FITTINGS BRASS - HSN CODE: 3917
Elbow - PN 16 (Brass)
HSN Code: 39172390
| ITEM CODE | SIZE (MM) |
|---|---|
| PF24025015 | 25 X 15 (1⁄2") |
| PF24032015 | 32 X 15 (1⁄2") |
Female Threaded Adapter (FTA) - PN 16 (Brass)
HSN Code: 39172390
| ITEM CODE | SIZE (MM) |
|---|---|
| PF22025015 | 25 X 15 (1⁄2") |
| PF22032015 | 32 X 15 (1⁄2") |
Tee - PN 16 (Brass)
HSN Code: 39172390
| ITEM CODE | SIZE (MM) |
|---|---|
| PF23025015 | 25 X 15 (1⁄2") |
| PF23032015 | 32 X 15 (1⁄2") |
SOLVENT CEMENT - HSN CODE: 3506
Clear – Regular
HSN Code: 39172390
| ITEM CODE | PACK | QTY (ML) |
|---|---|---|
| PESCLR0050 | Tin | 50 |
| PESCLR0100 | Tin | 100 |
| PESCLR0250 | Tin | 250 |
| PESCLR0500 | Tin | 500 |
| PESCLR1000 | Tin | 1000 |
Grey – High Pressure
HSN Code: 39172390
| ITEM CODE | PACK | QTY (ML) |
|---|---|---|
| PESGHP0500 | Tin | 500 |
| PESGHP1000 | Tin | 1000 |
Truflo PVC Plumbing System
Truflo is a leading PVC plastic pipes manufacturers in India, and their PVC pipes have been used for pressure applications for a long time. Today, PVC pressure systems are used for a wide range of applications such as distributing drinking water, recycled water, sewage and gas. Truflo prides itself on manufacturing a complete range of quality PVC pressure pipes, PVC fittings, using only the finest raw materials and best practices within the industry pertaining to the set industrial limits, for all your pipe system requirements. The complete range of products goes through stringent testing as per the national and international standards to ensure high performance and durability. They are available in a pressure rating of 4, 6, and 10 kgf/cm2. The PVC fittings available are coupler (6 and 10kgf/cm2), elbow 90 plain (6 and 10kgf/cm2), male thread adapter, female thread adapter, elbow 90 plain (Nova and Alfa), male thread reducing adapter, end cap plain (6 and 10kgf/cm2), female thread reducing adapter, reducer, reducing Tthreaded elbow, reducing Tthreaded tee, reducer tee, service saddle, tee 90 plain (6 and 10kgf/cm2), reducing bush, and more. Further, the PVC brass fittings include elbow, tee, female threaded adapter, and more.
We offer a premium range of PVC pressure pipe systems for a wide range of project requirements. PVC pressure pipes are manufactured from PVC resin compounded with lubricants, stabilisers and pigments. The pipes do not contain any plasticisers and thus are widely known as unplasticised PVC or uPVC.
UPVC pipes have been used for pressure applications for a long time. Over time, different industries have understood the very many benefits of PVC for pressure pipes: high strength to weight ratio, material stability, corrosion resistance, ease of handling and installation and extraordinary flow characteristics.
Applications of PVC pressure pipes
PVC pressure pipes are suitable for an array of pressure applications, including pressure sewerage, water supply, irrigation, recycled water, gas and industrial applications. Other applications of Plastic PVC plumbing pipe are coal washing plants, fume extraction ducts, slurry lines, effluent lines, drainage installations for both domestic and industrial purposes, chemical plant installations, surface water drainage, and more.
FAQS
What are PVC pipes used for?
PolyVinyl Chloride) PVC is a synthetic polymer plastic. It is robust, weather resistant and used for plumbing applications.
What are the different applications of PVC pipes and fittings?
PVC pipes are used in drinking water distribution in irrigation systems, swimming pools, Agriculture and Industrial applications and other water dispersal applications
What are the types of PVC pipe?
PVC pipes are generally categorised into four categories: PVC-U unplasticised, C-PVC (chlorinated PVC), PVC-O (molecular oriented PVC) and modified PVC. Each type of PVC has its own advantages for different applications, besides sharing many properties
Are PVC pipes safe for drinking water?
PVC pipes are very safe for potable water distribution.
Are PVC pipes resistant to chemicals?
PVC pipes are very safe because they are chemical and corrosion resistant.
What are the different types of Pipes and fittings available with TRUFLO Pipes?
TRUFLO manufactures a wide range of pipes. CPBC, UPVC, PVC, SWR, UGD, multi-layer composite pipes as well as UPVC column pipes.
What are the major features and benefits of TRUFLO PVC pipes?
Truflo PVC pipes are Hygienic, odour free, chemical and corrosion resistant, maintenance free and very economical.
How long can PVC pipe last?
Under ideal circumstances PVC pipes last a lifetime. Anywhere over sixty years.
What is the major problem with PVC piping?
PVC pipes are brittle and have their limitations in environmental issues.
How long will PVC pipe last under water?
If properly designed and installed, PVC pipes can last for about a hundred (100) years.
What is the maximum height of PVC pipe?
PVC pipes come in different sizes depending on the application. They start from 40 and go up to 350 mm.
What is the temperature limit of PVC pipe?
PVC pipes can withstand temperatures up to 60 degrees C. They can melt or crack in higher temperatures.
