TRUFLO UPVC COLUMN PIPES
FOR Borewell application
In the pursuit of offering word class pipes & fittings solutions, Truflo introduces Column Pipes for borewells. Truflo Column Pipes are a master piece, manufactured with a specially developed Coaxial Orientation Technology.
The manufacturing process employs a specially developed technique where the pipe is stretched in both circumferential and axial directions, and is aligned to provide supreme strength on both sides. This enhances its key material properties such as tensile strength, heavy pressure bearing strength, high impact strength and load bearing strength.

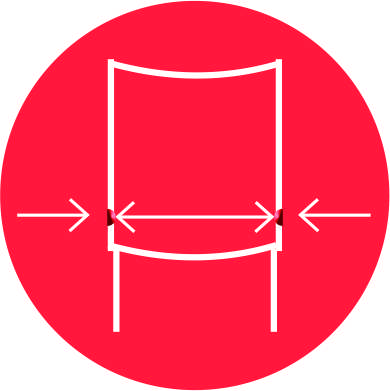

Double Grip Locking System (PP) made with heavy tensile metal is developed to prevent slippage of the UPVC column pipe from the UPVC Coupler. This locking system eliminates the chances of the coupler loosening and column pipe slipping during the dismantling process. This locking system also absorbs the torque generated during switching on and switching off of the pump.
TRUFLO Column pipes comes with Double Grip High-tensile Brass Locking System.
Superior Advantages
| Size Type | V4 12.5 (available in bell & coupler jointing) | V4 15 (available in bell & coupler jointing) | Crystal (available in bell & coupler jointing) | Standard (available in coupler jointing) | Eco Medium (available in coupler jointing) | Medium (available in coupler jointing) | Heavy (available in coupler jointing) |
| Colour/Coding Printing | Orange | Purple | Green | Red | Purple | Orange | Blue |
| 1" | ✓ | ✓ | ✓ | ✓ | |||
| 11/4" | ✓ | ✓ | ✓ | ✓ | ✓ | ||
| 11/2" | ✓ | ✓ | ✓ | ✓ | ✓ | ||
| 2" | ✓* | ✓ | ✓ | ✓ | ✓ | ||
| 21/2" | ✓ | ✓ | ✓ | ||||
| 3" | ✓ | ✓ | ✓ | ||||
| 4" | ✓ | ✓ | ✓ |
Highlights
Ultra Light weight when compared to metal pipes.
Easy & convenient to install, when compared to G.I. pipes.
High load bearing capacity.
Leak proof joints with Cup Seal Ring.
Threaded pipe joint coupler with Double Grip Locking System (Patent pending).
Coaxial Orientation Technology for high pipe strength.
Lead free, no effect of pipe material on water.
UV stabilised ensuring no microbial growth.
Frictionless discharge helps electricity savings enhanced water flow by 10% to 30% and increased life efficiency of motor pump.
Product from the “House of Hindware” - a company with 6 decades of trust in Indian market.
Accessories
Top Adapter
Without flange (1", 1¼", 1½", 2", 2½", 3")
With flange and double coupling length (1", 1¼", 1½", 2, 2½", 3", 4")
With flange and single coupling length (1", 1¼", 1½", 2", 2½", 3", 4")
Bottom Adapter
Bottom Adapter (1", 1¼", 1½", 2", 2½", 3", 4")
With flange (1", 1¼", 1½", 2½")
Reducer (1¼" x 1", 1½" x 1¼", 1½" x 1", 2" x 1½", 2½" x 2", 3" x 2½", 4" x 3")
Expander (1" x 1¼", 1¼" x 1½", 1½" x 2", 2" x 2½", 2½" x 3")
